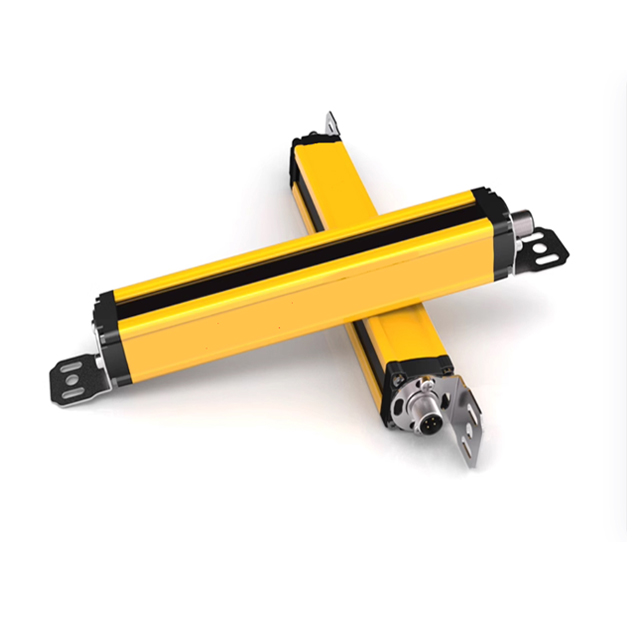

Technical?Specification???( Grating technical parameter list?)
Working Power Supply |
DC10V-30V |
||
Rate of work |
＜5W |
||
Beam pitch |
20mm |
40mm |
|
Resolution ratio |
30mm |
50mm |
|
Number of optical axes |
4、6、8……80 |
4、6、8……80 |
|
Protection Height |
H : ( protection height )??N:?number of optical axes ·?????H=（N-1）X ?Beam pitch |
||
Field Emission Lamp |
940NM |
||
Response Time |
response time?=（N?x?0.1ms）+ 0.4ms?（N:number of optical axes） |
||
|
? Safety Output（OSSD） |
PNP transistor output: Load current ≤200mA, residual voltage ≤1V (excluding voltage drop caused by cable extension), leakage current ≤1mA ? NPN?transistor output: Load current ≤200mA, residual voltage ≤1V (excluding voltage drop caused by cable extension), leakage current ≤1mA |
||
Protection circuit |
Power over?voltage protection, reverse polarity protection and output over?current protection |
||
Beam distance |
0.02m-30m |
||
·?Anti-light interference |
10,000Lux（angle of incidence?I＞5°） |
||
Grating Mode |
·??????????????????Radiative?convective |
||
·?????Synchronization mode |
line synchronization |
||
Shell material |
Aluminium alloy |
||
Protection grade |
IP65 |
||
Sectional dimension |
35*50mm |
||
Resistance to shock |
Frequency: 10Hz-55Hz, amplitude: 0.35±0.05mm, 20 times each in the X, Y and Z directions |
||
·???????????Operate temp |
·???????????????-10℃-55℃（No condensation） |
||
Store temp |
·??????????????-30℃-70℃（No condensation?） |
||
Operating humidity |
When the temperature is 20℃, the relative humidity of the air is less than 85% |
||
?
4、Specification and Model description
For Example：
BEBK-3SG-?04/06/08.......80?-10/20/40/-H1/L1-N/P-C/C1-C-30MM
?
BEBE-3SG:series safety light curtain
Number Of Optical Axes: 04、06、08、10……80??
Beam Pitch：10mm、20mm、40mm
installing support :???H1:Install from top to bottom?, L1: Install from left to right
Output methods :?N :NPN output, P: PNP output
Scanning methods: C: Parallel scan, C1: Cross scan
Sensing mode: C: Normally closed
Protection height?:30MM
5、The working status of the safety light curtain?
?
|
? Output Mode |
? Grating state |
Ejector indicator light |
Acceptor indicator light |
Output the OSSD status of the signal ( Grating power supply?=DC24V?) |
|
green light |
green light |
red light |
|||
NPN is normally closed |
nonopaque |
¤ |
¤ |
● |
DC0V |
diaphragmation |
¤ |
● |
¤ |
Open（hang in the air） |
|
|
PNP ??????is ???normally closed |
nonopaque |
¤ |
¤ |
● |
DC24V |
diaphragmation |
¤ |
● |
¤ |
Open（hang in the air） |
|
?
Marke：¤?The indicator light is on?●?The indicator light goes out???OSSD:?OSSD1?Or?OSSD2
?
?
???Warning: ??It is strictly prohibited to use normally open grating in safety protection environments?;
Otherwise, the grating will not be able to work.
