※ Application field
Shaft diameter runout detection
Stitch gap measurement
Position detection and control of textile machinery inspection valve
Wear measurement of vehicle braking device?

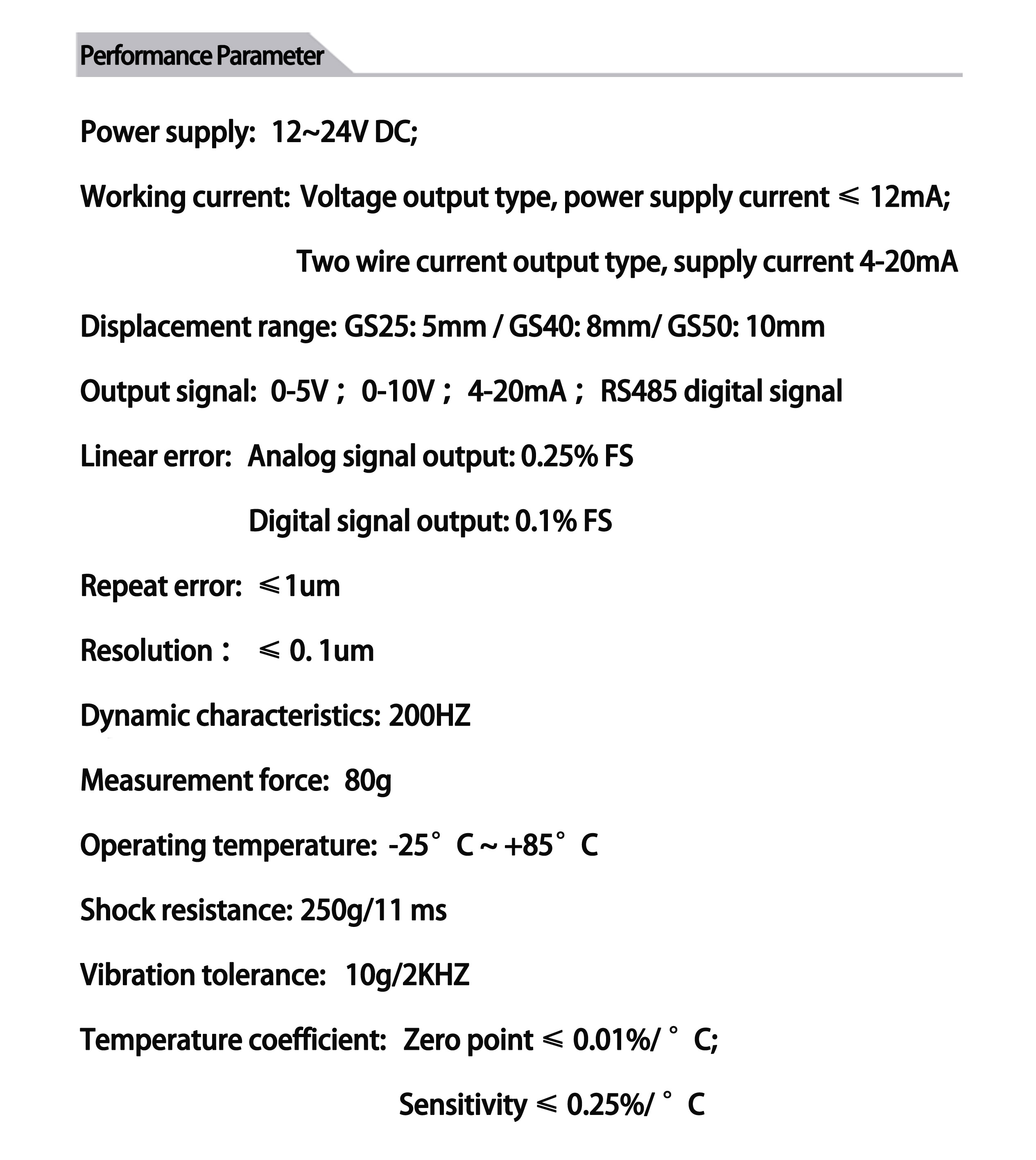

※Performance parameter
?
Power supply: |
12—24V DC; |
Working current: |
Voltage output type, power supply current ≤ 12mA; Two wire current output type, supply current 4-20mA |
Displacement range: |
GS25 ： 5mm / GS40:8mm/ GS50:10mm |
Output signal: |
0-5V ； ?0-10V ； ?4-20mA ； ?RS485 digital signal |
Linear error: |
Analog signal output: 0.25% FS Digital signal output: 0.1% FS |
Repeat error: |
≤1um |
Resolution ： |
≤ 0. 1um |
Dynamic characteristics: |
200HZ |
Measurement force: |
80g |
Operating temperature: |
-25 °C — +85 °C |
Shock resistance: |
250g/11 ms |
Vibration tolerance: |
10g/2KHZ |
Temperature coefficient: |
Zero point ≤ 0.01%/ ° C; Sensitivity ≤ 0.25%/ ° C? |
